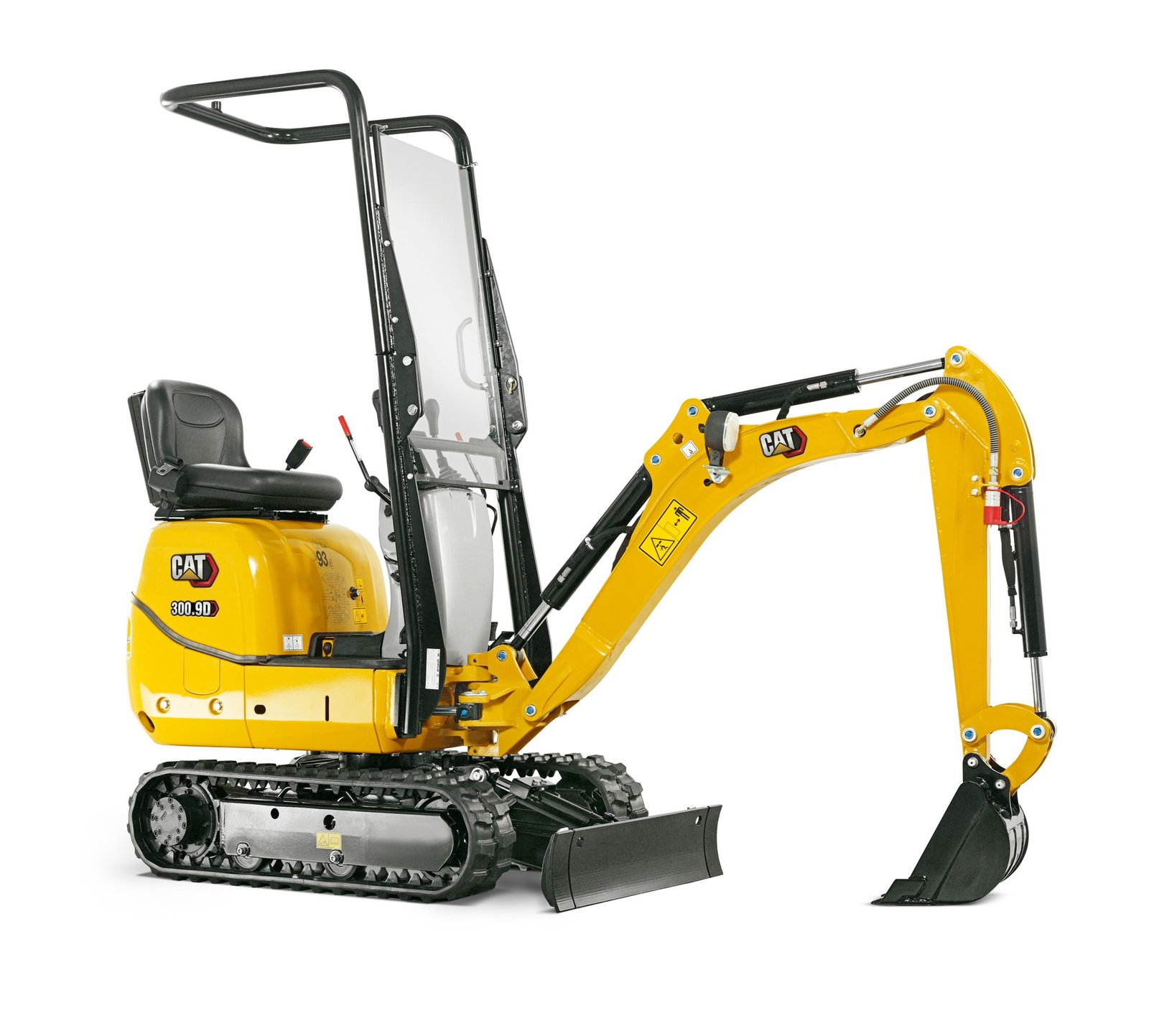

300.9D Mini Hydraulic Excavator

High Performance Engines

Net Power 13 hp

Operating Weight 2061 lb

Dig Depth 68 in

Description
Reviews (0)

Compact Dimensions 300.9D Mini Hydraulic Excavator

With an overall width of only 730 mm (2 ft 5 in) the Cat® 300.9D can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 1000 kg (2,205 lb) weight making easy trailer transportation between sites possible. 300.9D Mini Hydraulic Excavator

Full Specifications

Operational Data
Operating Weight – Without Safety Frame :2061 lb
Digging Force – Bucket: 2000 lb
Digging Force – Stick: 1011 lb
Operating Weight – With Safety Frame: 2170 lb

Engine

Net Power: 13 hpEngine Model: Yanmar 31NV70
Rated Speed: 2100 r/min
Maximum Engine Output: 18 hp
Gross Power – ISO 14396: 18 hp
Diesel Tank Volume: 2.64 gal (US)
Displacement: 52 in³
Flywheel Output ISO: 13 hp
Battery: 12 V, 20 Amp
Type: Water cooled model 3–cylinder diesel engine
Make/Type: Yanmar 31NV70
Emissions: Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.

Weights

The Operating Weight – Without Safety Frame: 2061 lb
Operating Weight – With Safety Frame: 2170 lb
Operating Weight: 2061 lb

Dimensions

Dig Depth: 68 in

Undercarriage Width – Extended: 2.83 ft

Width: 2.4 ft

Height – With ROPS Safety Frame Folded Down: 4.94 ft

Maximum Dump Height: 6.68 ft

Maximum Dozer Lift Height: 8 in
Length – Undercarriage: 4 ft
Maximum Vertical Dig Depth: 4.43 ft
Minimum Front Linkage Swing Radius: 3.77 ft
Boom Swing Angle – Left: 55 °
Undercarriage Width – Retracted: 2.33 ft
Boom Swing Angle – Right: 56 °
Maximum Reach: 10.09 ft
Maximum Reach – Ground Level: 9.92 ft
Transport Length – Arm Lowered: 9 ft
Track Width: 7 in
Tail Swing Radius: 2.41 ft
Maximum Dozer Dig Depth: 7 in
Maximum Dig Height: 9.39 ft
Height – With ROPS Safety Frame Unfolded: 7.47 ft
